Diode Dynamics Stage Series Reverse Light Kit for Tundra (2022-2026)

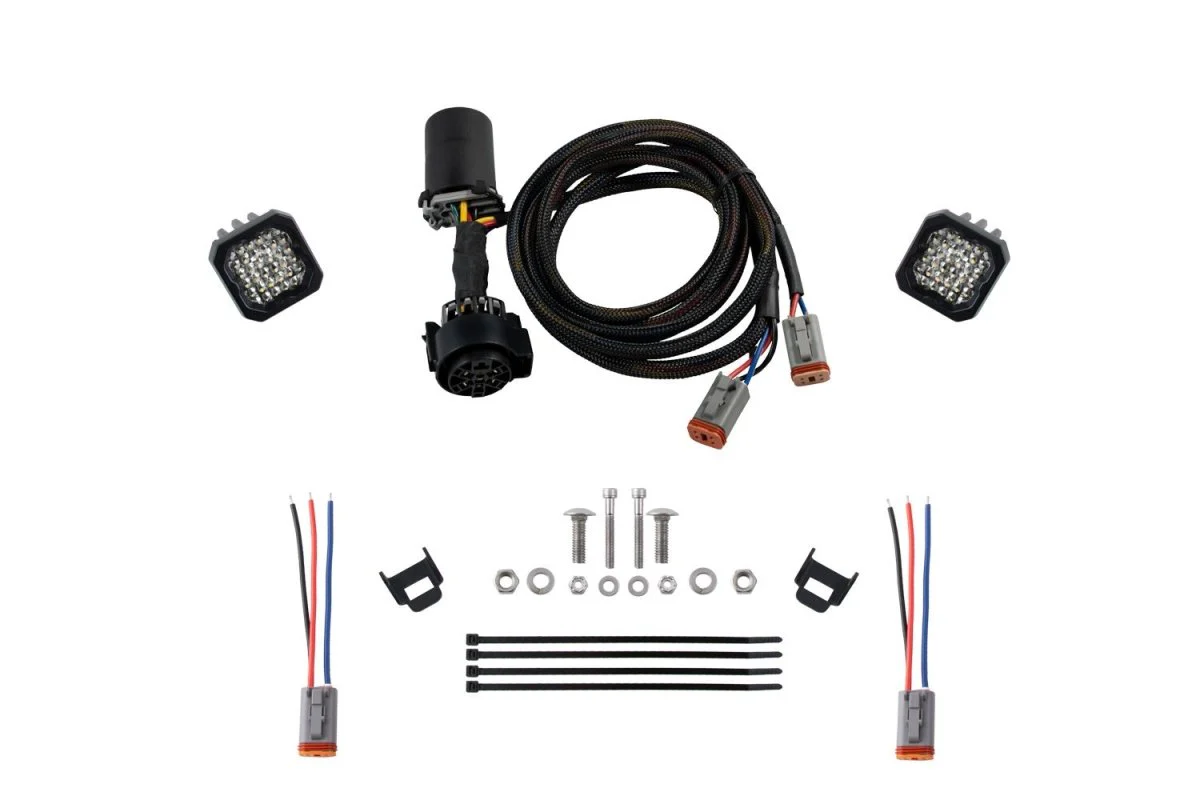

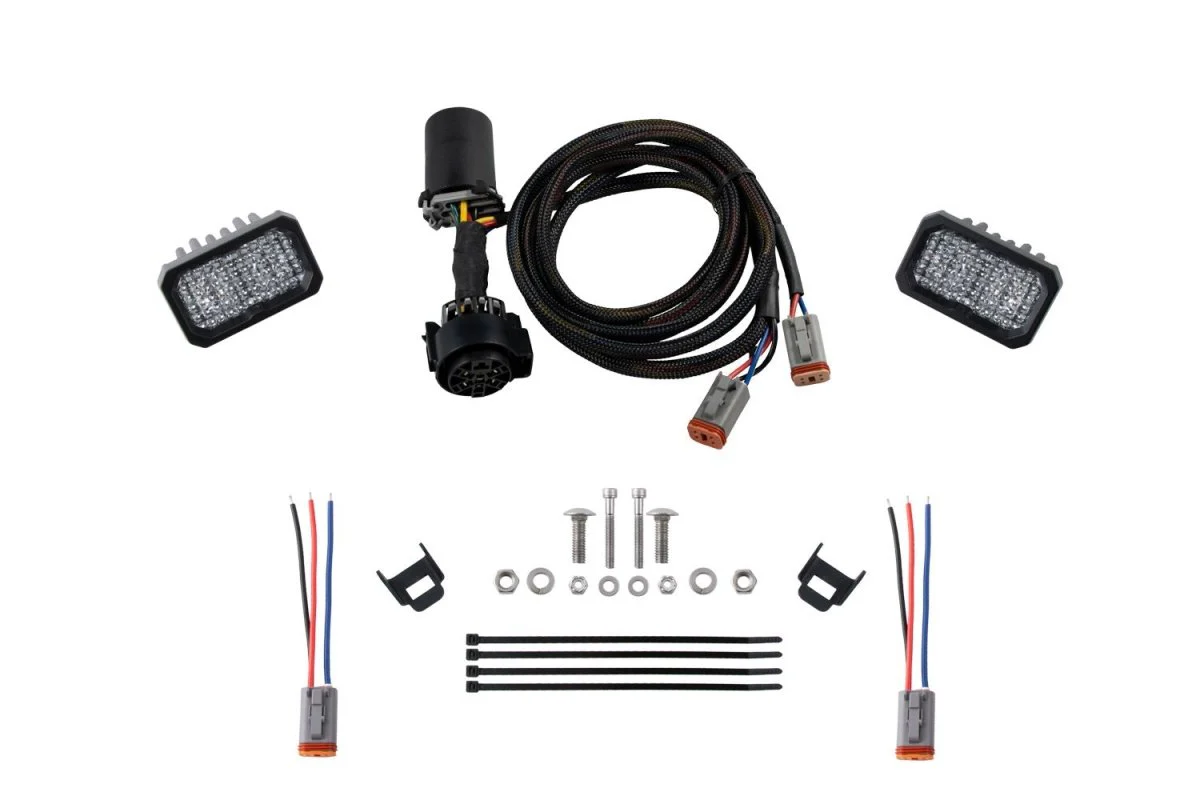

There are plenty of ways to add light behind your Tundra, but the new Diode Dynamics Stage Series Reverse Light Kit for Tundra (2022-2026) stands out with innovations in both function and ease of use. Thanks to custom-molded OEM connectors, this kit is completely plug-and-play. The included adapter harness plugs right into your factory trailer hitch wiring for easy installation and operation. No cutting, drilling, or additional wiring needed! The kit operates as an additional red accent light, with your tail lights, and then automatically switches to a high-power backup light when your vehicle is in reverse. If you would like to have override functionality to manually turn on the main beam anytime, you will need to purchase the universal backup harness. The Diode Dynamics Stage Series Reverse Light Kit for Tundra also includes a flood pattern lens.

Features

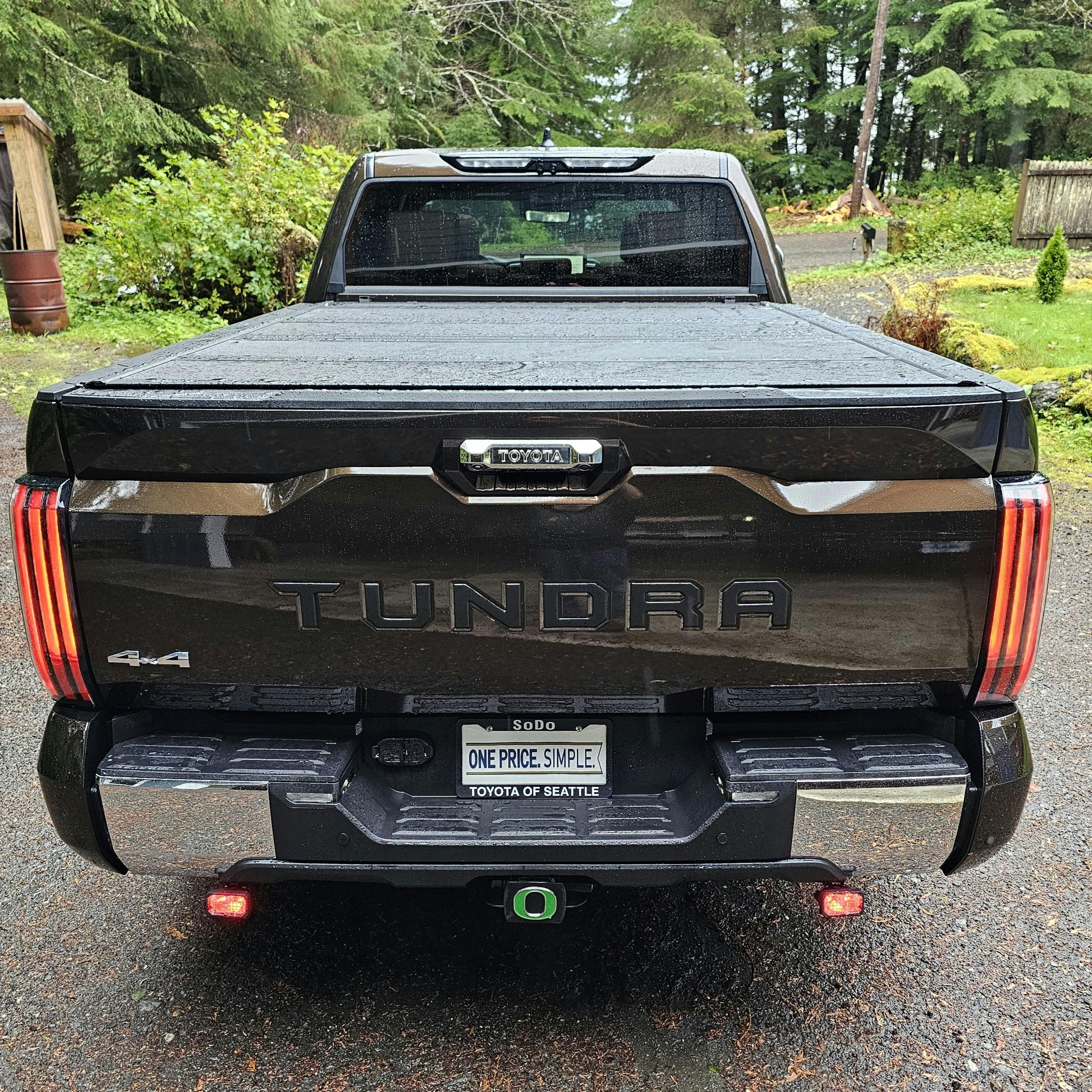

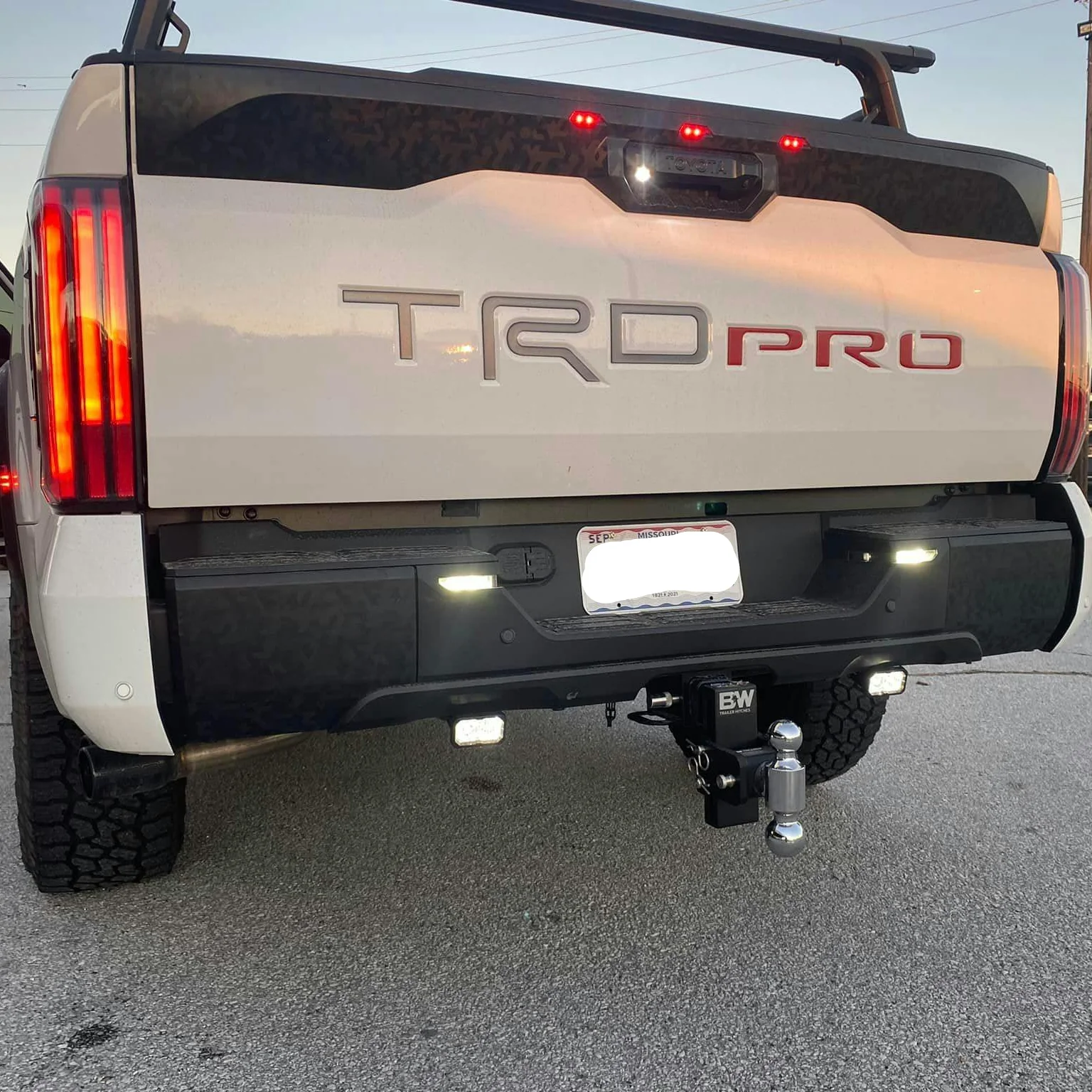

• Mount two SSC1 or C2 2.0 pods underneath the 2022-2026 Toyota Tundra rear bumper.

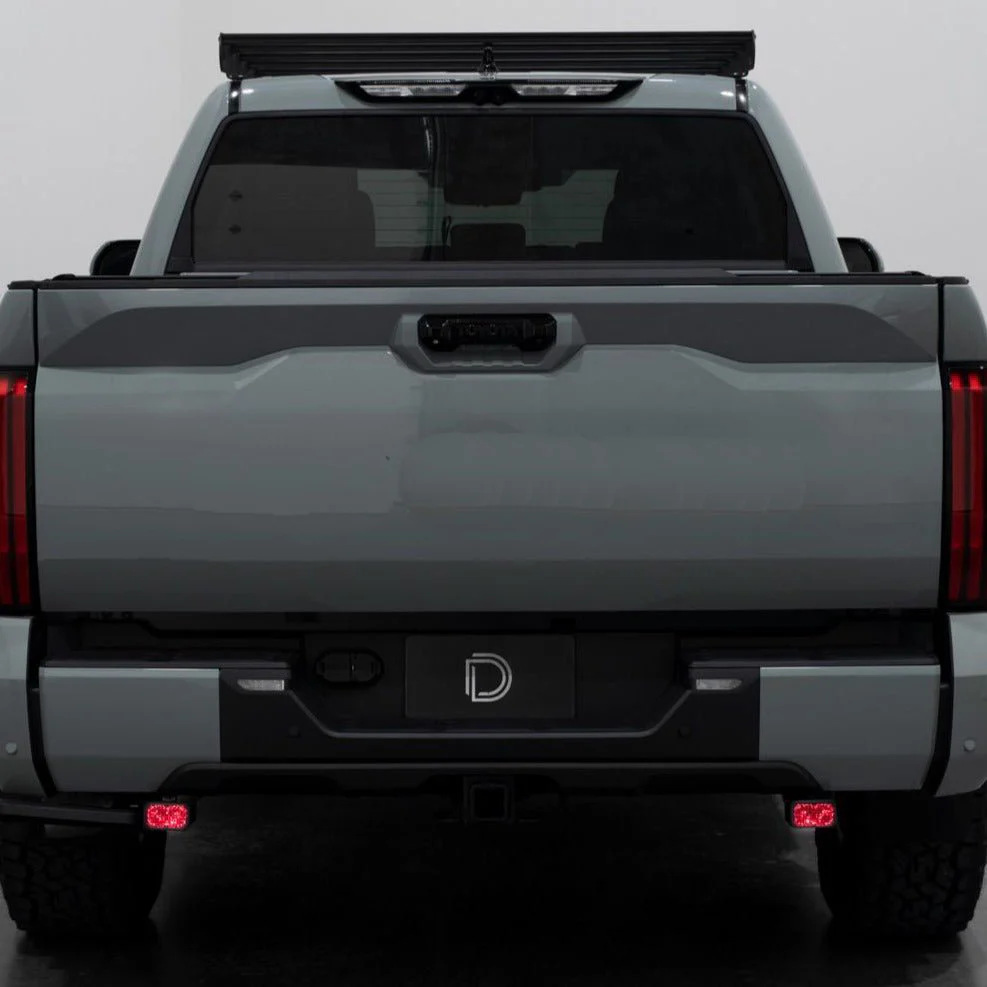

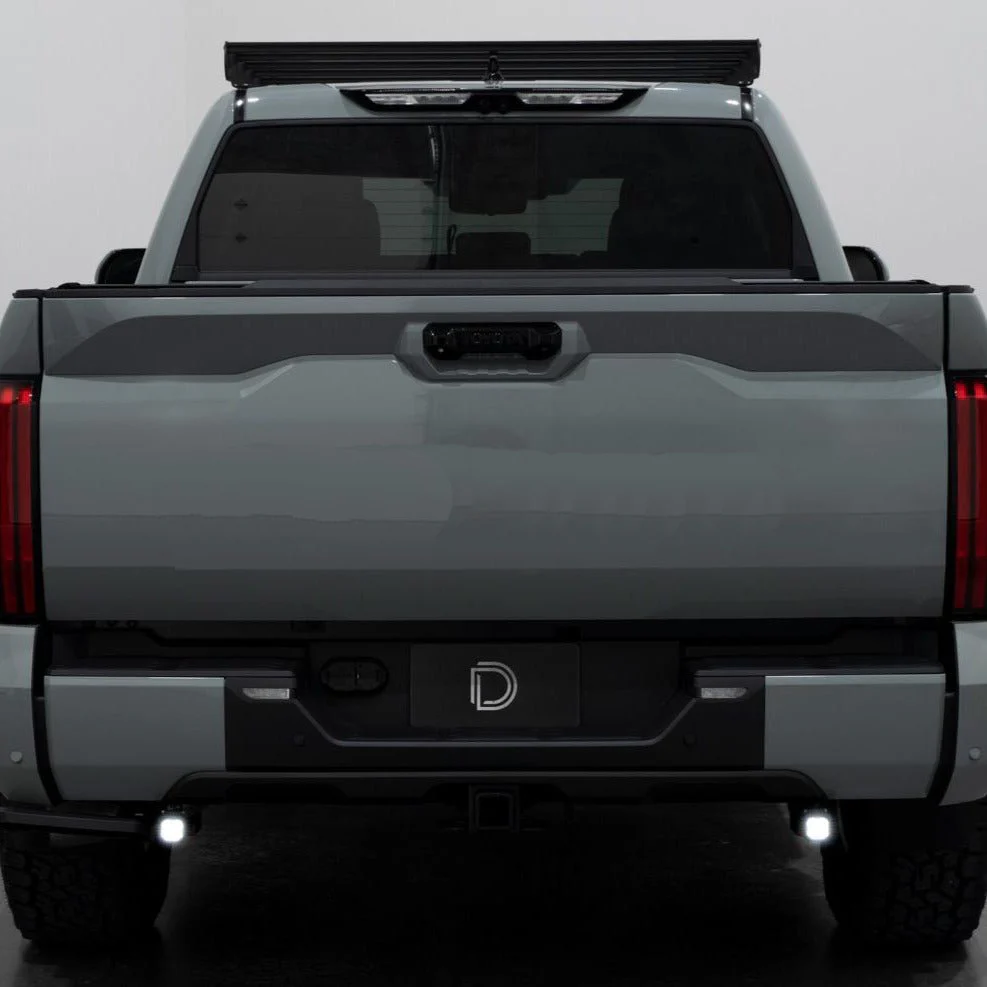

• Provides high-power reverse light, and red accent light.
• Connects to trailer hitch wiring for simple, everyday operation of lights.
• Bolts on to rear bumper, no cutting or modification to factory bumper.
• Simple, 10-minute installation.
• Designed and assembled in USA.

Specifications

• Color Temp (CCT): 6000K
• Power (watts): SSC1 Sport: 12.8, SSC1 Pro: 19, C2 2.0 Sport: 15, C2 2.0 Pro: 23
• Operating Voltage: 9-16V
• Polarity: Polarity Specific
• Operating Temperature: -40C to 85C (-40F to 185F)
• LED Emitter: Osram Ostar Projection Compact, Lumileds Automotive Grade LED
• Connector(s): Deutsch DT Input
• Driver Features: Constant Current
• Materials: Polycarbonate Lens, Aluminum Casting, Rubber Gasket
• Cooling: Passive, Pin-Fin heatsink
• Compliance Ratings: SAE J575 Durability Test
• Intrusion Ratings: IP69K Waterproof, High Pressure
• Unit Weight (lb): SSC1: 0.52 SSC2: 0.70
• Product Weight (lb): SSC1: 1.70 SSC2: 2.10

Fitment

• Make: Toyota
• Model: Tundra
• Year: 2022, 2023, 2024, 2025, 2026

Lens Color/Optics	Raw Output (lumens)	Output Color
SSC1 Sport	1,449 lm	6000K White
SSC1 Pro	2,375 lm	6000K White
C2 2.0 Sport	1,190 lm	6000K White
C2 2.0 Pro	3,140 lm	6000K White
